Vaclift CVL500NT

SKU CVL500NT_002
Original price $6,100.00 - Original price $6,100.00
Original price
$6,100.00
$6,100.00 - $6,100.00
Current price $6,100.00
Availability:
In stock

All prices are exclusive of GST.

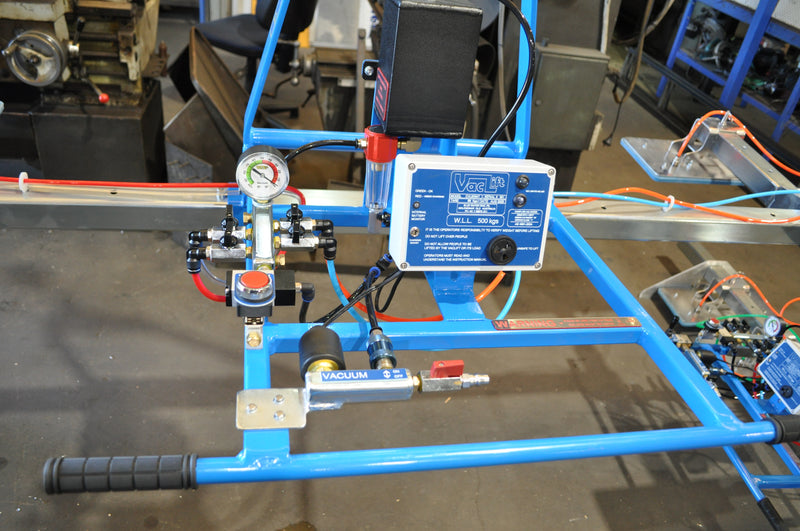

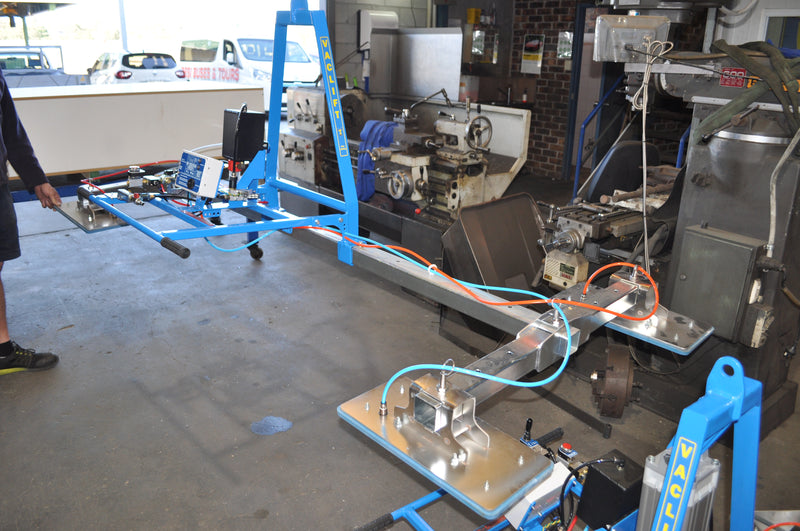

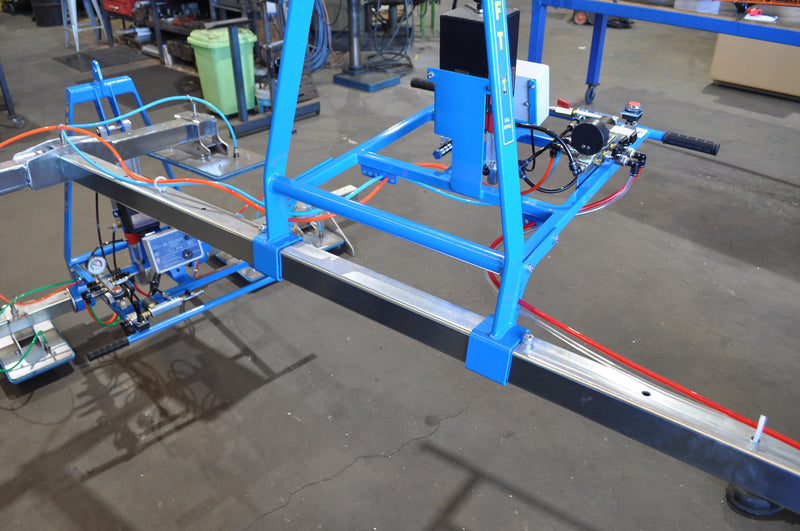

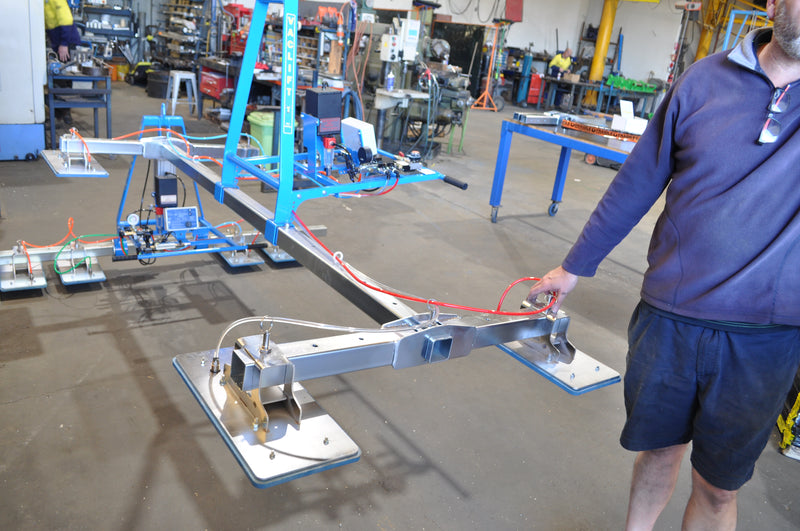

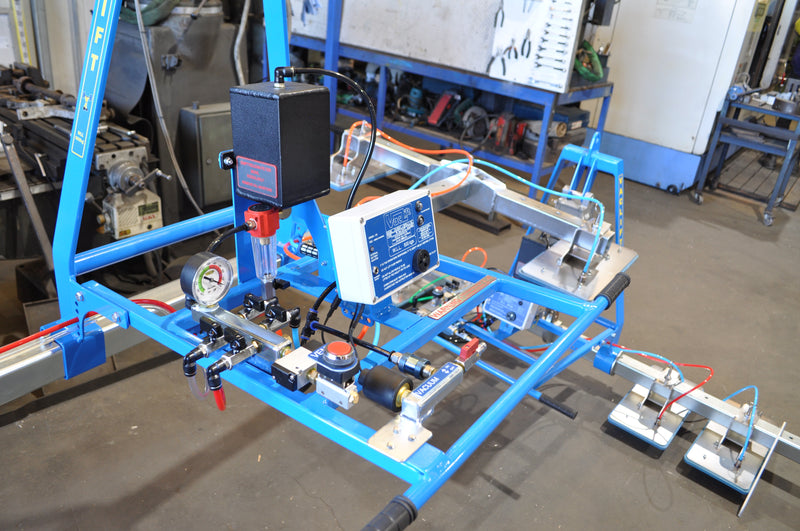

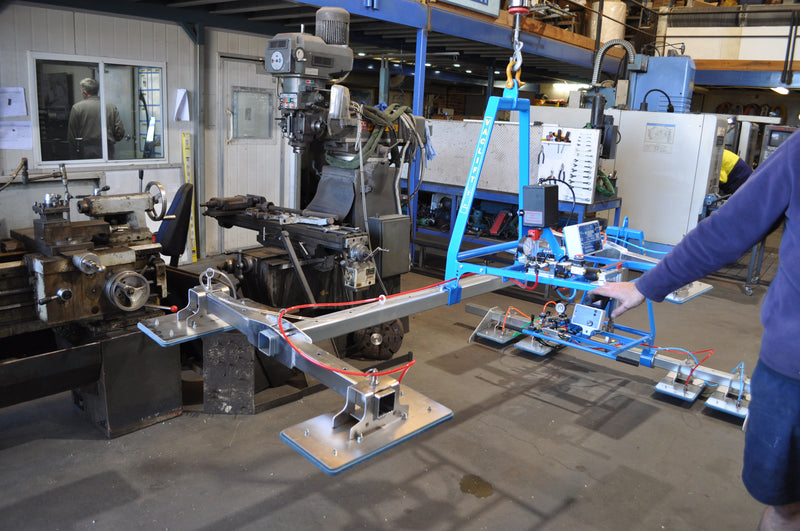

The CVL500NT is a robust crane-mounted vacuum lifter designed for
workshop and industrial use. Built for performance and safety, this unit
offers a reliable solution for lifting and tilting heavy materials up to

500kg with ease. Operating on compressed air, it features 4 high-
performance Vaclift Hi Vac pads - specially engineered to handle

abrasive environments like waterjet cutting and stone processing. With

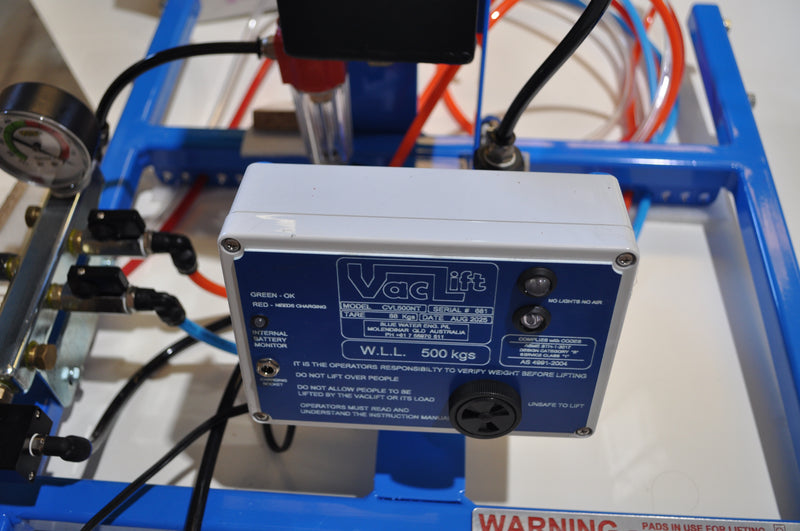

a durable powder-coated and zinc finish, audible and visual safety
alarms, and a quick-adjust pad system, the CVL500NT is made to
withstand tough conditions while delivering smooth, efficient operation.
Each unit meets both Australian and USA safety standards and
includes a full set of care and maintenance instructions for long-term
use. Ideal for businesses needing safe, hands-free lifting capability in
demanding environments.
All Vaclifts are fully supported by Blue Water Engineering for spare
parts, repairs and servicing.

Standard shipping

Estimated delivery time: 7-10 days

Specifications

MAXIMUM LIFT CAPACITY : 500kg
COMPRESSED AIR SUPPLY :3.4cfm 80psi
TILT FUNCTION : No
MAIN BAR LENGTH : approx. 2280mm
SPREADER BARS : No
VACUUM PADS : 4
PAD DIMENSIONS : 473mm x 228mm
INDEPENDENT PAD ISOLATION : Yes
ADJUSTABLE PAD POSITIONING : Yes
QUICK CHANGE PAD LATCHES : 10mm Heavy Duty Stainless
LIFTING POINT : Single

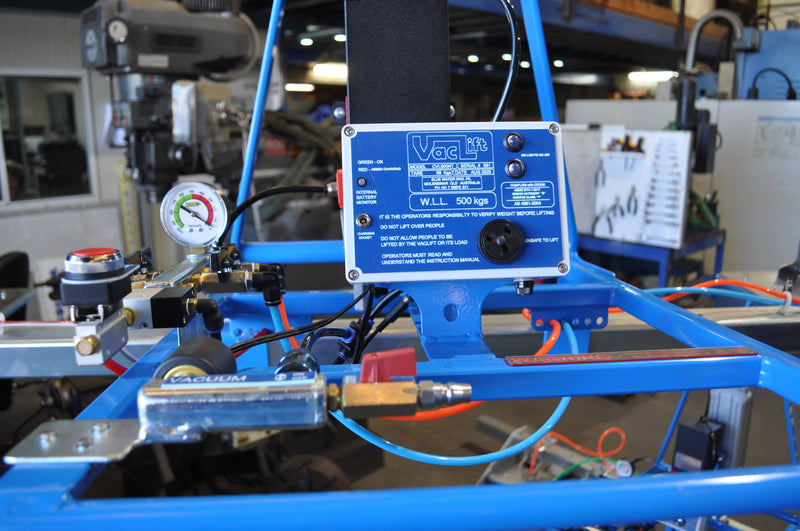

AUDIBLE & VISUAL ALARM : Yes
BATTERY CHARGER : Plug-in 12V
PROTECTIVE SLIDE-ON LEGS : Yes
FINISH : Zinc and Powder Coated
TARE WEIGHT : Approx.70Kg
STANDARDS COMPLIANCE : AS4991-2004 & ASME830.20-2010
WARRANTY : 12 Months
